High Alumina Insulation Bricks
Product Information
High-alumina insulation brick is a lightweight refractory material made of high-alumina bauxite as the main raw material, adding lightweight aggregates and additives, and formed, dried and fired at high temperature. It is mainly used for thermal insulation of high-temperature equipment.

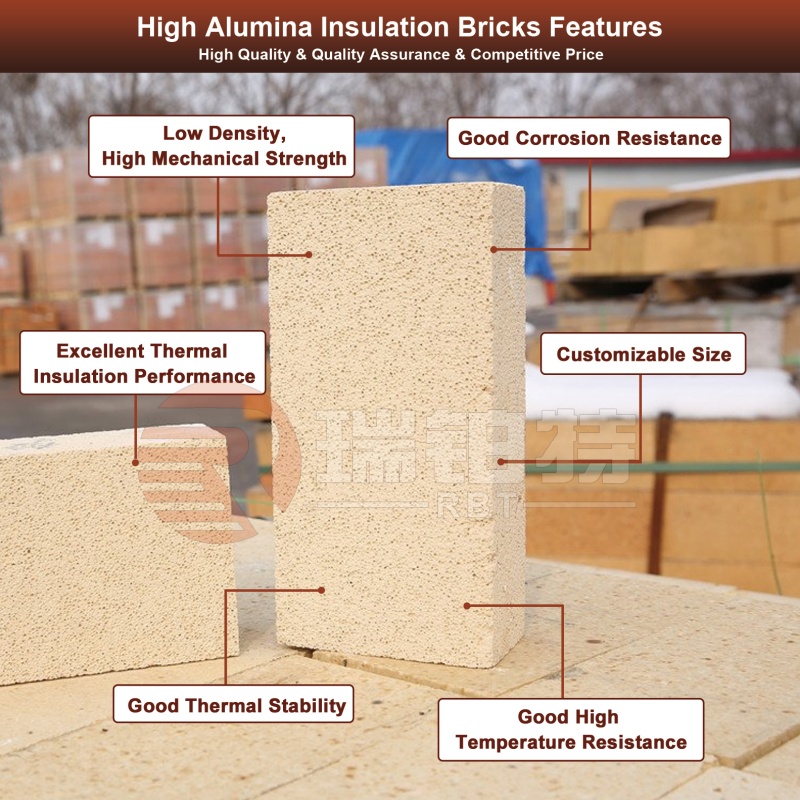

Main characteristics
Lightweight: low volume density, usually between 0.6-1.2g/cm³, reducing structural load.
High aluminum content: Al₂O₃ content is above 48%, high refractoriness, good thermal shock resistance.
Low thermal conductivity: excellent thermal insulation performance, reducing heat loss.
High temperature resistance: long-term use temperature can reach 1350℃-1450℃.
Thermal shock resistance: can withstand rapid temperature changes and is not easy to crack.
Mechanical strength: has a certain compressive and flexural strength to meet the use requirements.

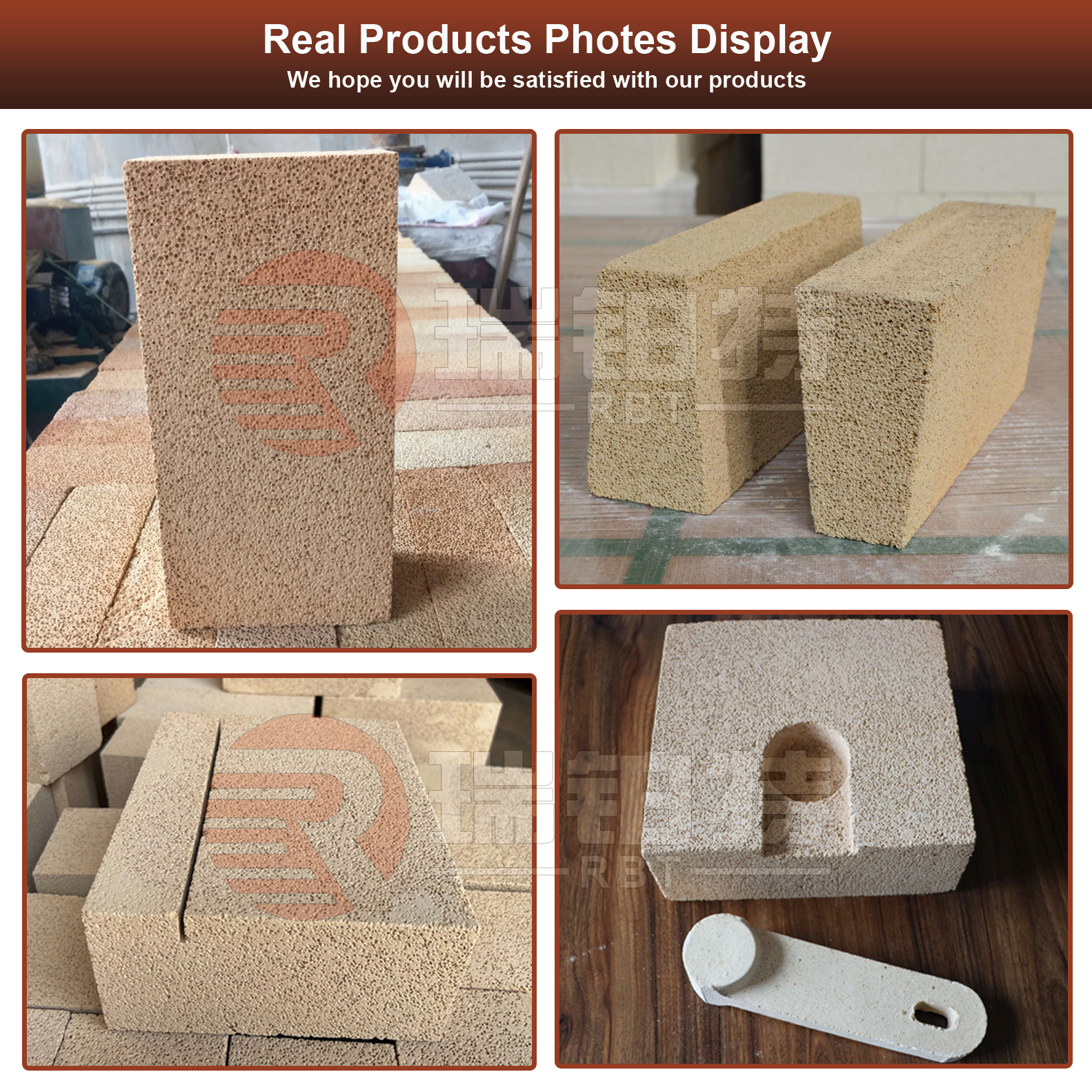

Details Images
Product Index
|
INDEX
|
RBTHA-0.6
|
RBTHA-0.8
|
RBTHA-1.0
|
RBTHA-1.2
|
|
Bulk Density(g/cm3) ≥
|
0.6
|
0.8
|
1.0
|
1.2
|
|
Cold Crushing Strength(MPa) ≥
|
2
|
4
|
4.5
|
5.5
|
|
Permanent Linear Change℃×12h ≤2%
|
1350
|
1400
|
1400
|
1500
|
|
Thermal Conductivity350±25℃(W/m.k)
|
0.30
|
0.35
|
0.50
|
0.50
|
|
Al2O3(%) ≥
|
50
|
50
|
55
|
55
|
|
Fe2O3(%) ≤
|
1.8
|
1.8
|
1.8
|
1.8
|
Application
Industrial furnaces: High-aluminum insulation bricks are one of the main insulation materials for industrial furnaces, and are widely used in high-temperature equipment such as steel smelting furnaces, ceramic sintering furnaces, and glass melting furnaces. It can maintain the stability of structure and performance under high temperature environment, effectively reduce heat transfer, and improve the thermal efficiency of equipment.
Heat treatment equipment: In the process of metal heat treatment, quenching, tempering, etc., high-aluminum insulation bricks can reduce heat loss and improve the heat treatment effect.
Chemical equipment: Due to its good chemical stability, high-aluminum insulation bricks are widely used in the chemical industry, such as thermal insulation of reactors, storage tanks, pipelines and other equipment.
Construction field: In the construction field, high-aluminum insulation bricks are used for the insulation layer of high-temperature industrial kilns and the thermal insulation protection of high-temperature pipelines.
Power industry: High-temperature electrical equipment such as electric furnaces and arc furnaces also often use high-aluminum insulation bricks as lining materials to withstand high temperature and arc erosion.
Aerospace: In the aerospace industry, high alumina bricks are used as lining materials for engines and other high-temperature components due to their light weight, high strength and high temperature resistance, improving the overall performance and reliability of the equipment.
Metallurgical Industry
Machinery Industry
Chemical Industry
Ceramic Industry

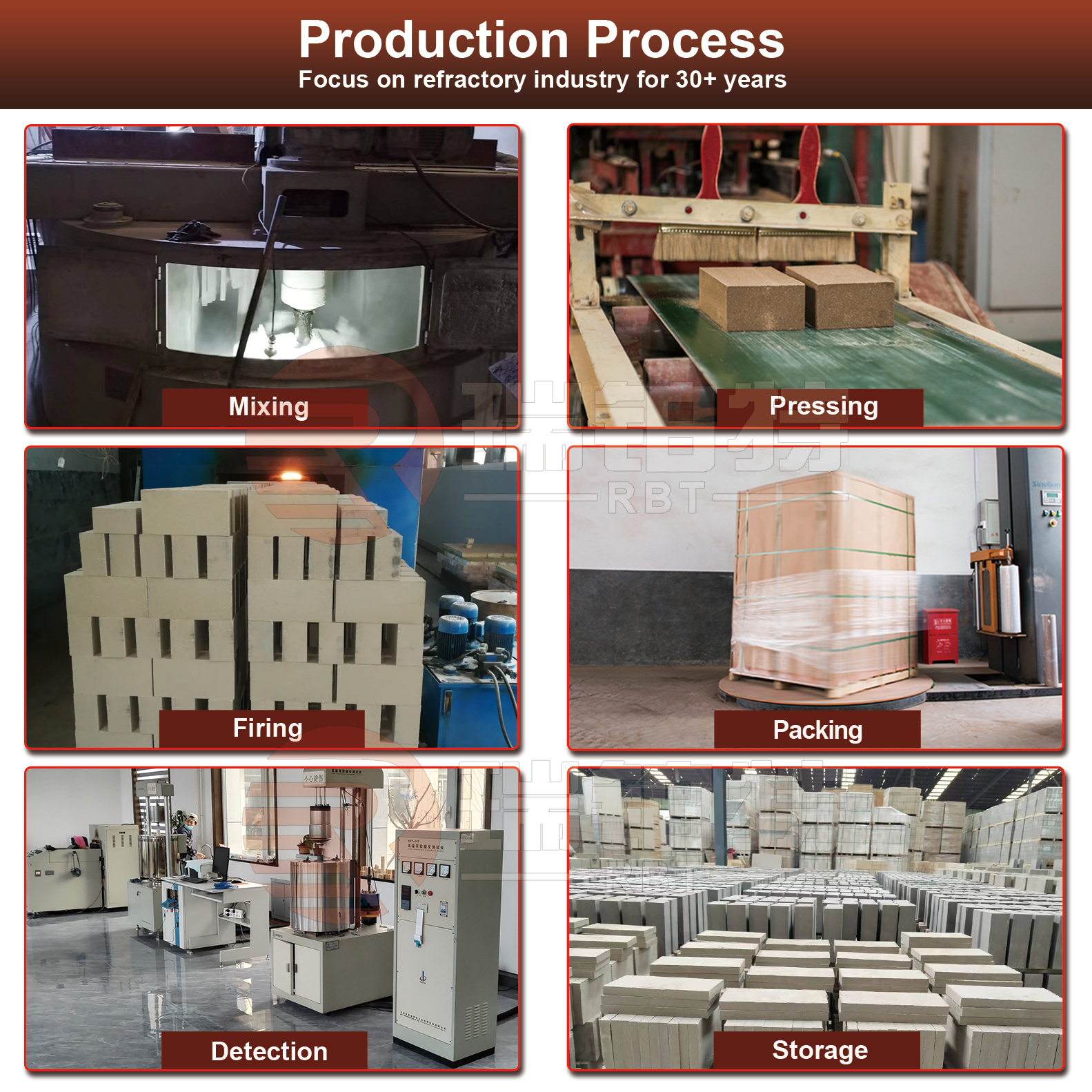

Production Process

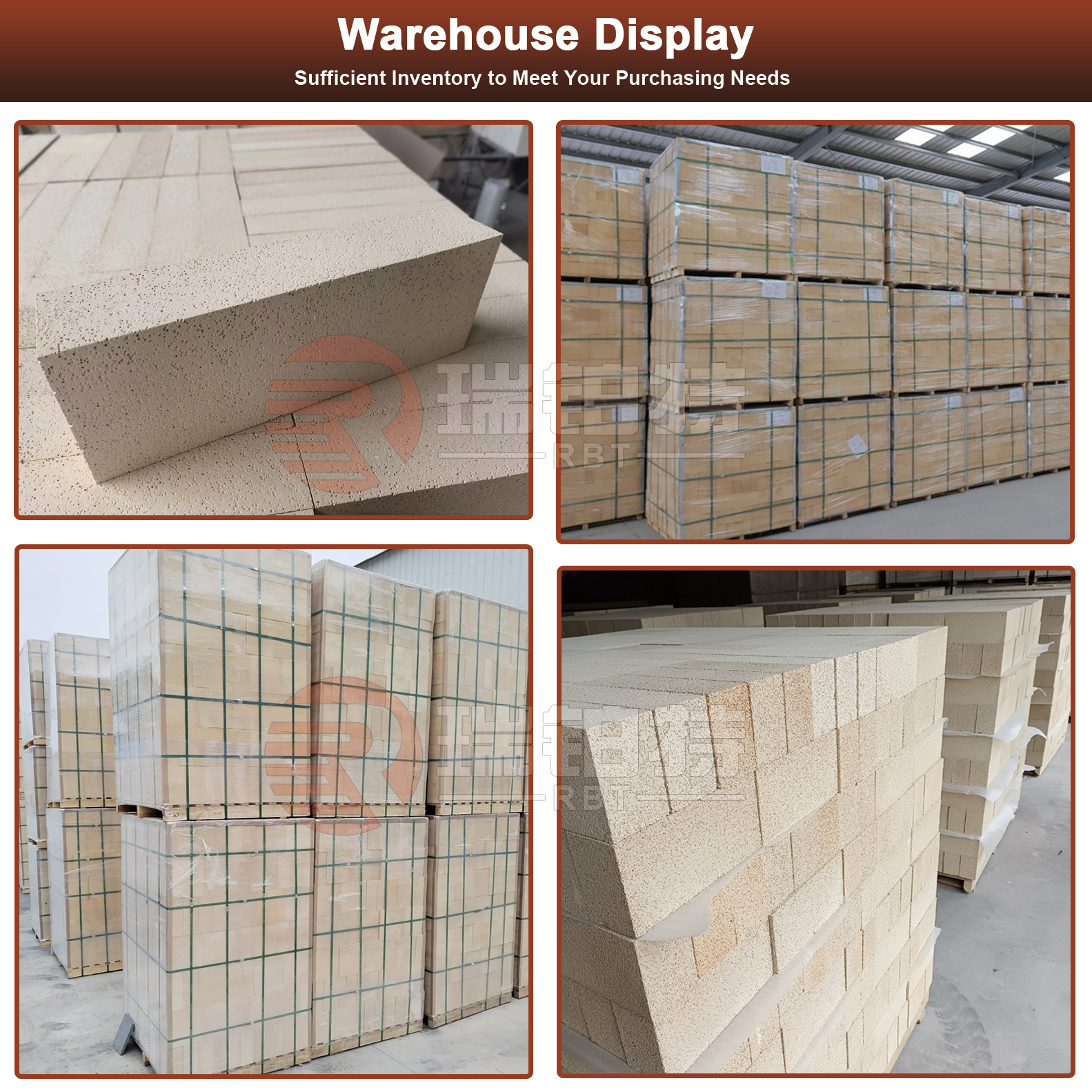

Package&Warehouse
Company Profile
Shandong Robert New Material Co., Ltd. is located in Zibo City, Shandong Province, China, which is a refractory material production base. We are a modern enterprise that integrates the research and development, production, sales, kiln design and construction, technology, and export refractory materials. We have complete equipment, advanced technology, strong technical strength, excellent product quality, and good reputation. Our factory covers over 200 acres and an annual output of shaped refractory materials is approximately 30000 tons and unshaped refractory materials is 12000 tons.
Our main products of refractory materials include: alkaline refractory materials; aluminum silicon refractory materials; unshaped refractory materials; insulation thermal refractory materials; special refractory materials; functional refractory materials for continuous casting systems.
